2022 Grand Design Solitude 3740BH

We installed a complete solar, battery, and inverter system with touchscreen control in this Grand Design Solitude S-Class 3740BH which is also used for shop demonstrations and for testing out the systems we install to gain real world experience. Additionally, we set this trailer up for complete off-grid RV living with wireless router & satellite internet, reverse osmosis water filtration, a converted upper bedroom dresser/desk combo unit for working remote on-the-go and a desk with file drawers in the rear bunkhouse for school and play on-the-go.

This trailer was outfitted with the following components to support fulltime off-grid RV living:

  • Qty 10 - 200W Grape Solar Panels w/ Adjustable Rocker Mounts

  • Qty 2 - Victron Energy SmartSolar MPPT 150/100-Tr (100A) Solar Charge Controllers w/ dedicated High-current Roof Combiner Boxes

  • Victron Energy BMV-712-S Smart Battery Monitor w/ Temperature Sensor

  • Victron Energy Multiplus-II 12/3000/120-50 2X120 VE.Bus Inverter/Charger

  • Victron Energy Digital Multi-Control 200/200A GX

  • Victron Energy VE.Bus Smart Dongle

  • Victron Energy MK3-USB USB Interface

  • Qty 4 - Battle Born GC3 270Ah (1,080 Total Ah) 12V LiFePO4 Deep Cycle batteries w/ Custom Parallel Bus Bars

  • Victron Energy Linx Distributor

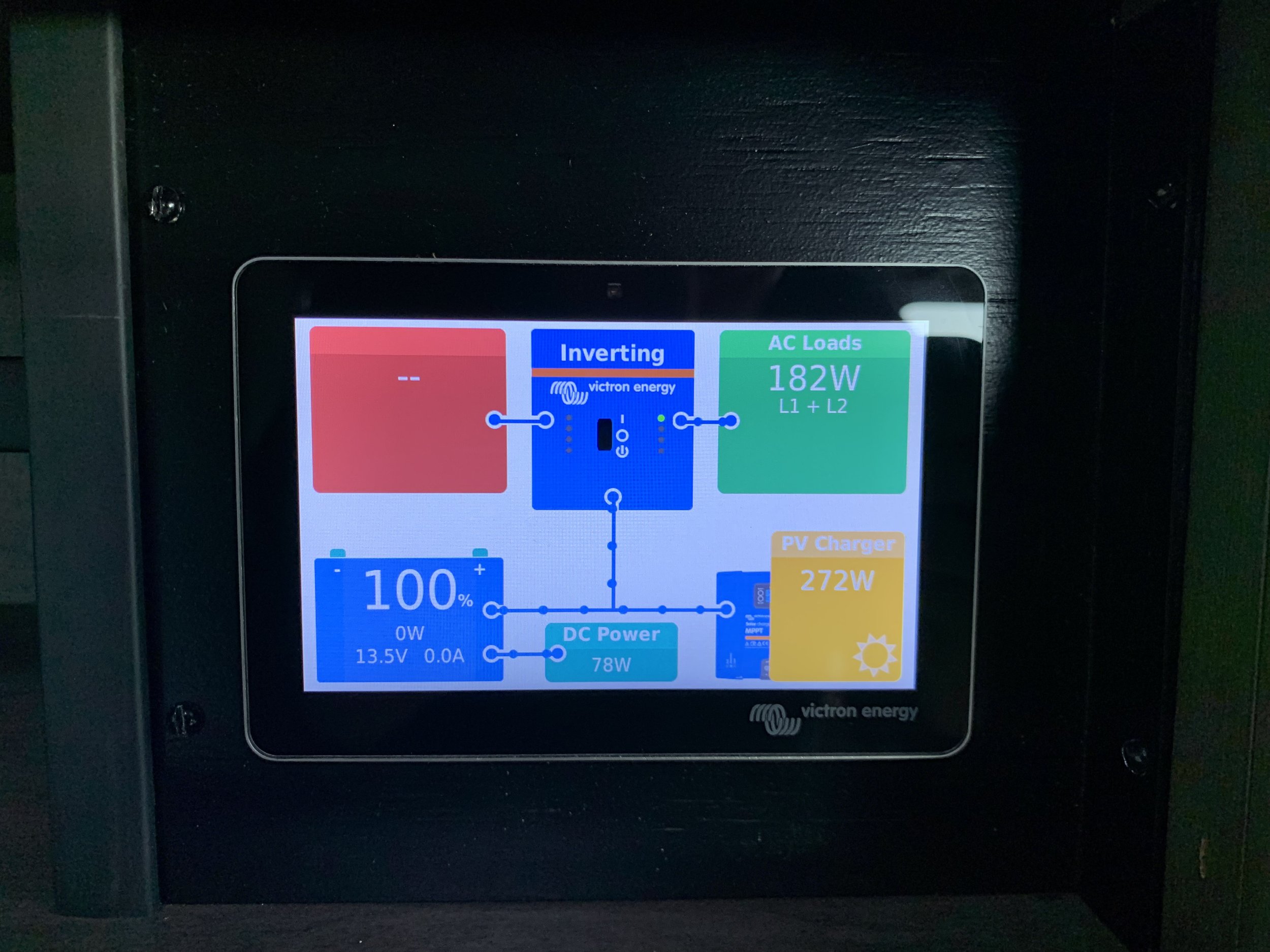

  • Victron Energy Cerbo GX w/ Touch 50 Touchscreen Control

  • Progressive Industries EMS-HK50C Electrical Management System w/ Monitor - 50A

  • Pepwave Max BR1 Pro 5G CAT-20 Mobile Router w/ Parsec Husky Pro 5G Omni-directional Antenna

  • Qty 2 - Easy Start 365 Air Conditioner Soft Start Kit

  • Starlink Satellite Internet w/ Satellite Dish Rear Ladder Mount

  • City Water Filter - 6-Stage Reverse Osmosis Water Filtration w/ Permeate Pump, 2-Gallon Storage Tank & Sink Faucet

  • Converted upper bedroom Dresser/Desk combo unit w/ Computer Monitor Mounts

  • Rear Bunkhouse Desk w/ File Drawers

Not only are we proud of this system and how well it performs, those of us at Quality RV Solar, LLC also play outdoors and use the products that we install. We stand behind the systems and technology we install because we use it ourselves.
